MSI B760M Bomber Wifi M-ATX Motheboard Intel 12th / 13th & 14th Gen Core- LGA 1700
Out of stock
Call for Price
Description
The MSI B760M BOMBER WIFI is a high-performance micro-ATX motherboard built for Intel’s 12th to 14th Gen CPUs. Featuring dual DDR5 slots supporting speeds up to 6400+ MHz (OC), it offers versatile storage with dual Gen4 M.2 slots plus 4 SATA ports. For graphics, it includes HDMI 2.1, DisplayPort 1.4, and VGA outputs. Networking is robust with 2.5 GbE and preinstalled Intel Wi-Fi 6E / Bluetooth 5.3 support. With PCIe 4.0, debug EZ LEDs, RGB headers, and Audio Boost, this board is ideal for gaming and performance builds.
| Specification | Detail |
|---|---|
| Chipset | Intel B760 |
| CPU / Socket | Supports Intel 12th / 13th / 14th Gen Core, Pentium Gold, Celeron — LGA 1700 |
| Memory | 2 × DDR5, up to 128 GB |
| Memory Speeds / OC | DDR5 6400+ (OC) / 6200 (OC) / 6000 (OC) / 5800 etc. |
| Graphics Outputs | 1 × HDMI (HDMI 2.1, HDR, 4K@60Hz) 1 × DisplayPort 1.4 (4K@60Hz) 1 × VGA (various resolutions) |
| Expansion Slots | 1 × PCIe 4.0 x16 1 × PCIe 4.0 x1 |
| Storage Interfaces | 2 × M.2 (M.2_1 from CPU supports PCIe 4.0 x4; M.2_2 from chipset supports PCIe 4.0 x4 / SATA) 4 × SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 on SATA devices |

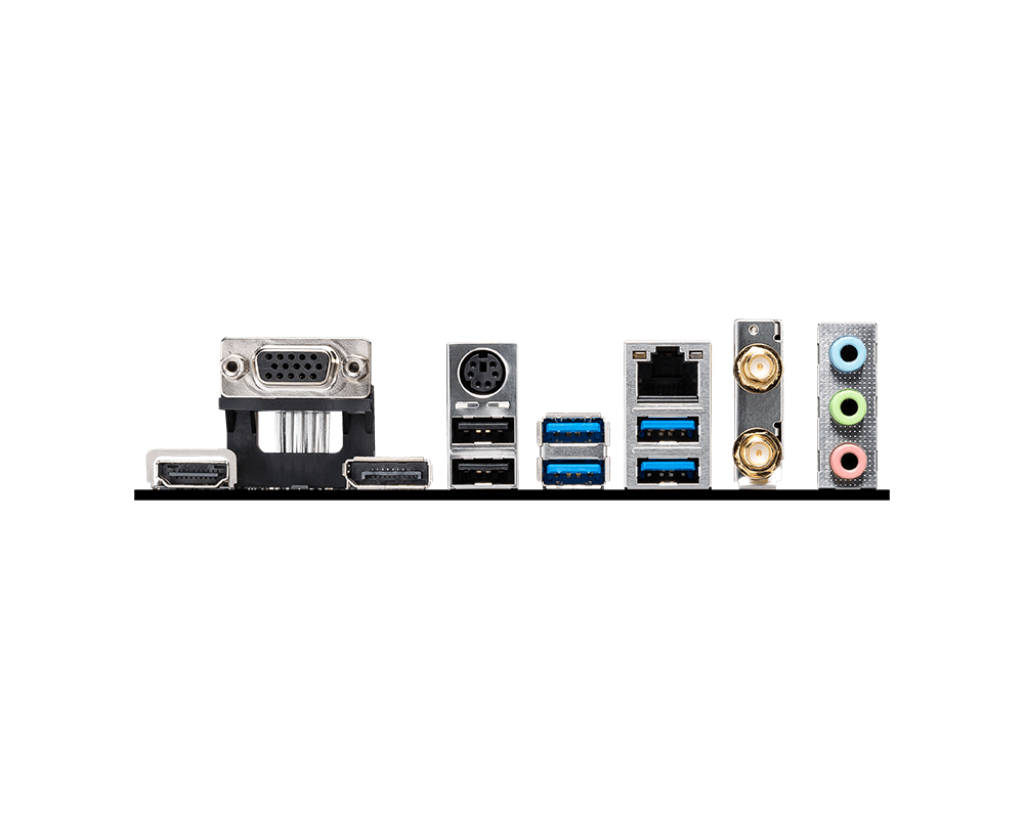

| USB / I/O Ports | 4 × USB 5Gbps Type-A (rear) 2 × USB 5Gbps Type-A (front) USB 2.0 ports (rear + front) |
| LAN / Networking | Realtek RTL8125B 2.5 Gbps LAN |
| Wireless / Bluetooth | Intel Wi-Fi 6E, Bluetooth 5.3 (preinstalled wireless module in M.2 Key-E slot) |
| Audio | Realtek ALC897 Codec, 7.1 Channel HD Audio with Audio Boost |
| Internal Headers / Features | Fan headers, RGB / Addressable RGB headers, TPM 2.0 header, debug EZ LED, etc. |
| Form Factor / PCB Size | micro-ATX, 220 mm × 243.84 mm |
| Operating Systems | Windows 10 / Windows 11 (64-bit) |
Additional information
| Warranty | 1-Year Warranty |
|---|
