ASUS PRIME Z890-P WIFI-CSM Intel Motherboard for Intel® Core™ Ultra Processors (Series 2), Socket LGA1851
Out of stock
₨ 94,899
Out of stock
Description
The ASUS PRIME Z890-P WIFI-CSM is an ATX motherboard engineered to maximize the performance of Intel® Core™ Ultra Processors (Series 2), utilizing the Intel® Z890 chipset. It supports DDR5 memory across four DIMM slots, offering dual-channel architecture and Intel® Extreme Memory Profile (XMP) for enhanced performance.
For expansion, the motherboard provides one PCIe 5.0 x16 slot, two PCIe 4.0 x16 slots (supporting x4 mode), and one PCIe 4.0 x16 slot (supporting x1 mode), accommodating various add-on cards. Storage options include four M.2 slots and four SATA 6Gb/s ports, supporting high-speed SSDs and traditional storage devices.
Connectivity features comprise Wi-Fi 7 for fast wireless networking and Realtek 2.5Gb Ethernet for reliable wired connections. The motherboard offers multiple USB ports, including Thunderbolt™ 4 USB Type-C®, USB 10Gbps Type-A, USB 5Gbps Type-A, and USB 2.0 Type-A ports, as well as display outputs via DisplayPort and HDMI™ ports.
Designed with robust power delivery, comprehensive cooling solutions, and intelligent tuning options, the PRIME Z890-P WIFI-CSM provides a stable and efficient platform for a wide range of computing needs, from everyday tasks to demanding applications.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | PRIME Z890-P WIFI-CSM |
| CPU Support | Intel® LGA1851 Socket: Ready for Intel® Core™ Ultra Processors (Series 2) |
| Chipset | Intel® Z890 Chipset |
| Memory Support | - 4 x DIMM slots, supporting DDR5 memory - Dual Channel Memory Architecture - Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots | - 1 x PCIe 5.0 x16 slot (supports x16 mode) - 2 x PCIe 4.0 x16 slots (support x4 mode) - 1 x PCIe 4.0 x16 slot (supports x1 mode) |
| Storage | - 4 x M.2 slots: - M.2_1 slot: type 2280/22110 (supports PCIe 5.0 x4 mode) - M.2_2 slot: type 2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot: type 2280/22110 (supports PCIe 4.0 x4 mode) - M.2_4 slot: type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) - 4 x SATA 6Gb/s ports |
| Networking | - Wi-Fi 7 - Realtek 2.5Gb Ethernet |

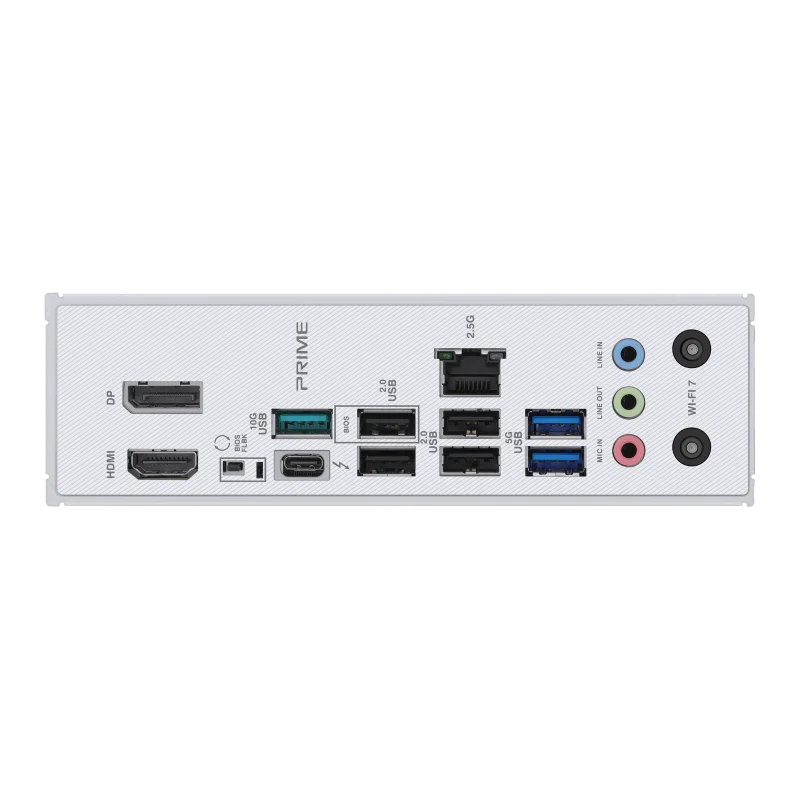

| USB Ports | Rear I/O Ports: - 1 x Thunderbolt™ 4 USB Type-C® port - 1 x USB 10Gbps Type-A port - 2 x USB 5Gbps Type-A ports - 4 x USB 2.0 Type-A ports - 1 x DisplayPort - 1 x HDMI™ port - 1 x Realtek 2.5Gb Ethernet port - 1 x Wi-Fi 7 module - 3 x Audio jacks - 1 x BIOS FlashBack™ button Internal Connectors: - 1 x USB 10Gbps connector (supports USB Type-C®) - 2 x USB 5Gbps headers (support 4 additional USB 5Gbps ports) - 2 x USB 2.0 headers (support 4 additional USB 2.0 ports) - 1 x Thunderbolt™ (USB4®) header |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Form Factor | ATX |
Additional information
| Warranty | 1-Year Warranty |
|---|
