ASUS PRIME B760M-A WIFI Intel Motherboard for Intel® LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel® Processors
In Stock
₨ 36,500
In Stock
Description
The ASUS PRIME B760M-A WIFI is a Micro-ATX motherboard designed to harness the full potential of 14th, 13th, and 12th Gen Intel® Core™ processors, as well as Pentium® Gold and Celeron® processors, utilizing the Intel® B760 chipset. It supports up to 128GB of DDR5 memory across four DIMM slots, offering dual-channel architecture and Intel® Extreme Memory Profile (XMP) for enhanced performance.
For expansion, the motherboard provides one PCIe 4.0 x16 slot (supporting x16 mode), one PCIe 4.0 x16 slot (supporting x4 mode), and one PCIe 4.0 x1 slot, accommodating various add-on cards. Storage options include two M.2 slots (Key M), both supporting PCIe 4.0 x4 mode for high-speed SSDs, and four SATA 6Gb/s ports for additional storage devices, with support for RAID 0, 1, 5, and 10 configurations.
Connectivity features comprise Wi-Fi 6 for fast wireless networking and Realtek 2.5Gb Ethernet for reliable wired connections. The motherboard offers multiple USB ports, including USB 3.2 Gen 2 and USB 2.0, as well as display outputs via DisplayPort and dual HDMI™ ports. Comprehensive cooling solutions, such as VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+, ensure efficient thermal management.
Designed with flexibility and performance in mind, the PRIME B760M-A WIFI provides a robust platform for a wide range of computing needs, from everyday tasks to demanding applications.
Product Specifications:
| Feature | Specification |
|---|---|
| Model | PRIME B760M-A WIFI |
| CPU Support | Intel® LGA 1700 Socket: Ready for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors |
| Chipset | Intel® B760 |
| Memory Support | - 4 x DIMM slots, supporting up to 128GB of DDR5 memory - Supported memory speeds: 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 MHz - Dual Channel Memory Architecture - Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots | - 1 x PCIe 4.0 x16 slot (supports x16 mode) - 1 x PCIe 4.0 x16 slot (supports x4 mode) - 1 x PCIe 4.0 x1 slot |
| Storage | - 2 x M.2 slots (Key M): - M.2_1 slot: type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_2 slot: type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - 4 x SATA 6Gb/s ports - Supports RAID 0, 1, 5, 10 |
| Networking | - Wi-Fi 6 - Realtek 2.5Gb Ethernet |

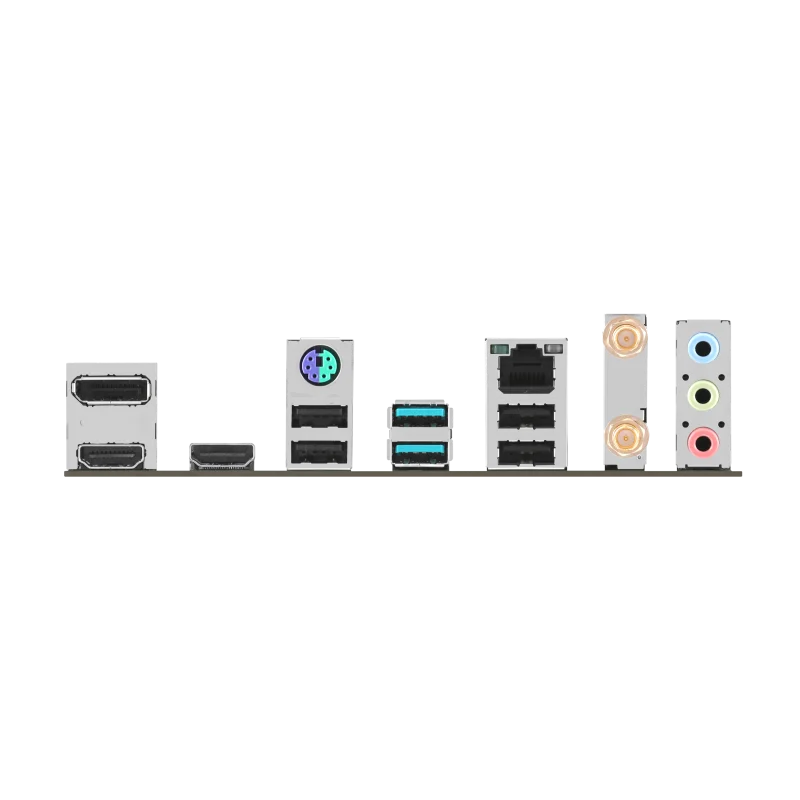

| USB Ports | Rear I/O Ports: - 2 x USB 3.2 Gen 2 Type-A ports - 4 x USB 2.0 Type-A ports - 1 x DisplayPort - 2 x HDMI™ ports - 1 x Realtek 2.5Gb Ethernet port - 1 x Wi-Fi Module - 3 x Audio jacks - 1 x PS/2 Keyboard/Mouse combo port Internal Connectors: - 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) - 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) - 2 x USB 2.0 headers (supporting 4 additional USB 2.0 ports) |
| Video Output | - 1 x DisplayPort - 2 x HDMI™ ports |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Form Factor | Micro-ATX |
