MSI X670E GAMING PLUS WIFI Motherboard for AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
In Stock
₨88,000.00
In Stock
Description
MSI X670E GAMING PLUS WIFI Motherboard
The MSI X670E GAMING PLUS WIFI is a high-performance ATX motherboard designed for gamers and PC enthusiasts seeking cutting-edge features and unbeatable performance. Powered by the latest AMD X670 chipset, it supports AMD Ryzen™9000/ 7000 series processors with the AM5 socket, unlocking extraordinary computing power and next-level gaming experiences. With support for PCIe 5.0, DDR5 memory, high-speed networking, and premium cooling solutions, the X670E GAMING PLUS WIFI is built to handle even the most demanding applications, making it the perfect choice for building a future-proof, high-performance gaming or workstation PC.
Key Features:
- AMD Ryzen™ 9000/7000 Series Support:
- Supports the latest AMD Ryzen™ 9000/ 7000 series processors (AM5 socket) for incredible gaming and multitasking performance.
- PCIe 5.0 support for lightning-fast data transfer and next-gen GPU and storage solutions.
- DDR5 Memory Support:
- 4 x DDR5 DIMM slots, supporting up to 128GB of RAM.
- Supports DDR5 speeds up to 6400 MHz (OC), ensuring fast and efficient multitasking and memory performance.
- PCIe 5.0 and Storage Options:
- 2 x PCIe 5.0 x16 slots for ultra-fast graphics cards and other high-performance expansion cards.
- 2 x PCIe 4.0 x16 slots for additional expansion options.
- 2 x M.2 slots and 6 x SATA 6Gb/s ports for extensive storage configurations, supporting both PCIe Gen 4 and SATA storage.
- Enhanced Networking:
- Built-in Wi-Fi 6E for fast wireless connectivity with support for the latest Wi-Fi 6E standard (up to 6 GHz frequency for low latency and higher speeds).
- 2.5G LAN for stable and fast wired network connections, ideal for online gaming and data-intensive tasks.
- Premium Cooling:
- Extensive heatsink coverage for efficient heat dissipation, ensuring stable performance during heavy workloads or overclocking.
- Multiple fan headers and pump headers for flexible cooling solutions, including support for water cooling systems.
- RGB Lighting & Aesthetics:
- MSI Mystic Light RGB lighting with customizable effects for a visually striking system build.
- Synchronize lighting with other compatible MSI devices using MSI Mystic Light software.
- Advanced Audio:
- Realtek® ALC4080 7.1 High Definition Audio CODEC for high-quality, immersive sound.
- BIOS & User-Friendly Features:
- MSI’s intuitive UEFI BIOS for easy configuration and overclocking.
- BIOS Flashback™ for simple updates without the need for a CPU or memory installed.
Ideal For:
The MSI X670E GAMING PLUS WIFI is designed for gamers, content creators, and PC enthusiasts who demand maximum performance, connectivity, and cutting-edge technology in their builds. Whether you’re playing the latest AAA games, streaming, or creating content, this motherboard provides the power and features needed for an outstanding experience.
Future-proof your PC build with the MSI X670E GAMING PLUS WIFI — designed to deliver the ultimate performance, connectivity, and gaming experience for today and beyond.
| Chipset | AMD X670 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 3x PCI-E x16 slot Supports x16/x1/x4 • Supports x16/x1/x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x1/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x1/x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| LED FEATURE | 4x EZ Debug LED |

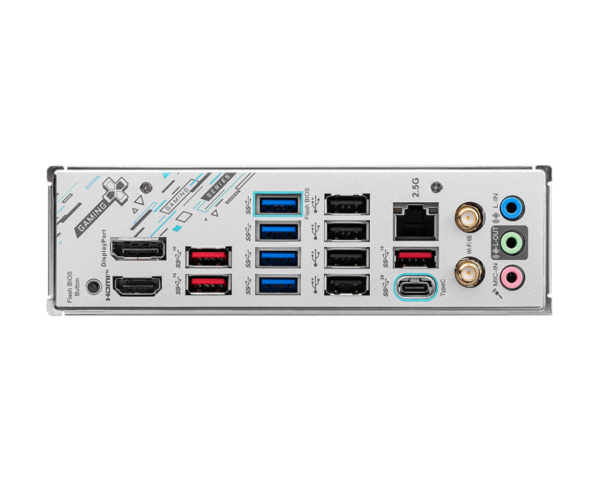

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
